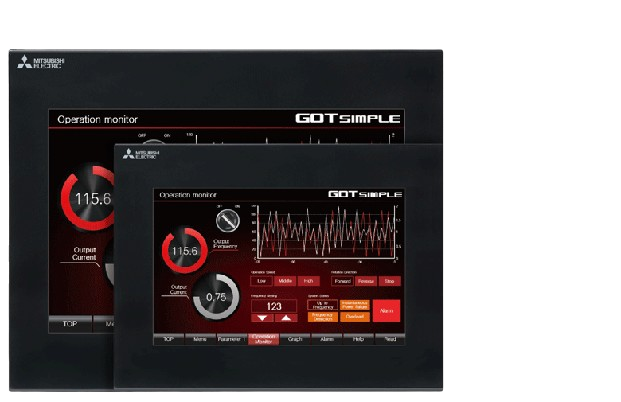

MITSUBISHI HMI GOT-SIMPLE SERIES SUPPLIER IN MUMBAI. An SD card port on the GOT Simple makes data logging simple. The GOT Simple may be utilised in a wide range of monitoring and control applications, such as temperature controllers, servo amplifiers, PLCs, VFDs, and more, because it has two communication channels that can operate simultaneously.
Quote Now →
Mitsubishi hmi simple series supplier in mumbai
, Mitsubishi offers a range of Human Machine Interface (HMI) products, including the Simple HMI line, as of January 2022, when I last updated this page. Typically, entry-level HMIs for simple control and monitoring applications make up the Simple HMI series. These HMIs are easy to use and offer the functionality needed to interface with other automation devices, such as Mitsubishi Electric PLCs.
Since Mitsubishi's product selection is subject to change and new models may have been released since my previous update, I'm afraid I don't have precise specs or model numbers for the Simple HMI series.
| Item | Specifications |
|---|---|
| The ambient temperature used for operation *1. | 0 to 50 ℃ |
| ambient temperature in storage | -20 to 60 ℃ |
| Operating and Storage Humidity Level | RH range: 10% to 90%, non-condensing *2 |
| Shock resistance | Conforms to IEC 61131-2 (147 m/s² (15G), three times in the X, Y, or Z directions) *6 |
| Working environment | No excessively conductive dust, flammable gas, corrosive gas or oily fumes (as well as at storage) |
| *3 Operational altitude | 2000 m or less |
| Installation location | Inside control panel |
| Category *4: Overvoltage | Ⅱ or less |
| Degree of pollution *5 | 2 or less |
| Cooling method | Self-cooling |
| Grounding | use a ground cable with a cross-sectional area of at least 2 mm2 to achieve grounding with a ground resistance of 100 Ω or below. If it's not possible, attach the control panel's ground line to it. |
Incorporates the temperature within the control panel enclosure where the GOT is installed.Mitsubishi hmi simple series supplier in mumbai
In the event that the outside temperature rises above 40 °C, the relative humidity at 40 °C shall not above 90% RH.Mitsubishi hmi simple series supplier in mumbai
The GOT should not be used or stored at pressures greater than atmospheric pressure at a height of 0 metres. This could result in a malfunction.Pressure applied to the control panel during air purging could allow space between the touch panel and surface sheet. This could lead to the sheet coming off or the touch panel not being sensitive enough.Mitsubishi hmi simple series supplier in mumbai
This denotes the portion of the power supply that is thought to be connected between the machinery inside the building and the public electrical power distribution network. Equipment that receives its power from fixed facilities falls under Category II. For equipment with a rated voltage of up to 300 V, the withstand surge voltage is 2500 V.Mitsubishi hmi simple series supplier in mumbai
This represents the frequency of conductive material in a setting where a device is being used. Pollution degree 2 denotes a normal environment with only non-conductive pollution occurring; depending on the circumstances, a transient conductivity due to condensation should be expected.Mitsubishi hmi simple series supplier in mumbai
In IEC 61131-2 ED, the definition of 1G has been modified from 9.8 m/s² to 10 m/s².3. The product was tested with 1G = 9.8 m/s², the previous specification.Mitsubishi hmi simple series supplier in mumbai
| Item | Specification | ||
|---|---|---|---|
| GS2110-WTBD-N | GS2107-WTBD-N | ||
| Power supply voltage | 24 V DC (+10%, -15%), ripple voltage 200 mV or less | ||
| Power consumption | Under the maximum load | 7.6 W (317 mA/24 V) or less | 6.5 W (271 mA/24 V) or less |
| Backlight OFF | 3.8 W (158 mA/24 V) or less | 3.8 W (158 mA/24 V) or less | |
| influx of current | At the maximum load, 17 A or less (6 ms, ambient temperature 25 °C) | ||
| Acceptable instantaneous power outage duration | Within 5 ms | ||
| Noise immunity | complies with IEC61000-4-4, power supply line at 2 kV. | ||
| Absorb voltage | 350 V AC for one minute between the earth and power connections | ||
| resistance to insulation | 500 V DC between the earth and power terminals, measured by an insulation resistance tester with at least 10 MΩ | ||
The manufacturing cycle time can be shortened by using a multi-CPU architecture that is set up with ultra-high-speed PLC CPUs and CPUs like the motion CPU and the C controller.
Easy data logging is made possible via the GOT Simple's SD card port. The GOT Simple can be used in many different monitoring and control applications, such as temperature controllers, servo amplifiers, PLCs, VFDs, and more, because it has two communication channels that can operate simultaneously.
There are many offers going on in our company that is why I cannot tell the exact price or if you want more information then contact us.
We courier it in 3 to 4 working days and then from there it will take as much time as it takes to reach your location for delivery.
If you buy any Mitsubishi product and find any defect in it or need to replace it, you can replace it within 7 days of delivery.
From then, it will take however long it takes to get to your area for delivery. We courier it in 3 to 4 working days.
We have all the products of Mitsubishi VFD FR-F series available. Click on the link given below
