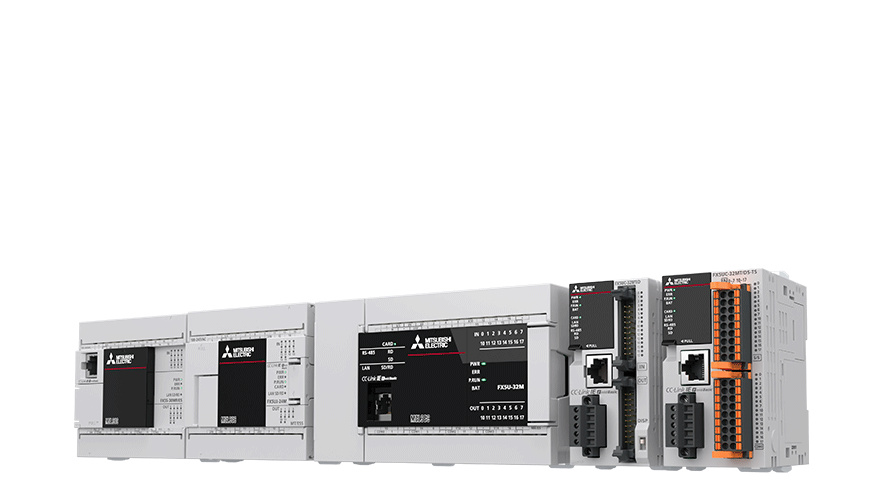

MITSUBISHI PLC MELSEC IQ-F SERIES AUTHORIZED DISTRIBUTOR IN NASHIK. This series, which is built on the ideas of exceptional performance, better drive control, IoT compatibility, and user-centric programming, can propel your company to new heights in the industry.
Quote Now →Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik, Along with "e-F@ctory," which information-links the high-level information system (manufacturing execution system, or MES) and production site, Mitsubishi Electric has proposed "iQ Platform," a solution that integrates and collaborates with controllers, HMI, engineering environments, and networks at the production site. Utilise cutting-edge technologies to optimise your system and save development, manufacturing, and maintenance expenses.Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
1. A notable increase in overall system performance as a result of high-speed Performance of the MELSEC series system busMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2. Outfitted with a memory specifically designated for the FBΓ1/label needed for programme standardisationMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
3. An improved, integrated security featureMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
1. Capable of capturing lossless 1-Gbps high-speed communication across a variety of networks, such as CC-Link IE TSNMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2. Using SLMPÓ2 to achieve seamless connectivity between several devicesMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
1. Capable of identifying and producing a large-scale network configuration diagram directly from the machineMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2. Recognised that the settings in each engineering software and MELSOFT Navigator mirror each other.Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
3. Automatically changing system labels based on device changes that are shared by every controller and HMIMitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
| Item | Outline Specifications | |
|---|---|---|
| Power supply |
||
| Rated voltage | 100 to 240 V AC, 50/60 Hz | |
| Power consumption | 28 W (30M), 30 W (40M), 33 W (60M) | |
| Rush current | Max. 30 A for 5 ms or less/100 V AC Max. 50 A for 5 ms or less/200 V AC | |
| 24 V DC service power supply capacity2 | 400 mA | |
| Input/ Output | ||
| Input specifications | 5.1 mA/24 V DC (X10 and later: 4.0 mA/24 V DC) | |
| Output specifications | Relay output types: 30 V DC or less, 240 V AC or less (250 V AC or less in the event of noncompliance with CE, UL, or cUL Standards), 6 A or less/3 points common, 8 A or less/4 points common, and 2 A/1 point Transistor output types: 5 to 30 V DC, 0.5 A/1 point, 0.6 A or less, 3 points common, and 0.8 A or less, 4 pointsMitsubishi PLC IQ-F Series authorized distributor in Nashik common. | |
| Input/output extension | No connection | |
1: If the configuration has the maximum number of connections, the values indicate the state in which the 24 V DC service power is consumed to the greatest extent possible. (Taking into account the input circuit's current)Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2: As an input device power source. (Expansion adapters cannot be powered externally by this source.)Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
| Item | Outline Specifications | |
|---|---|---|
| Power supply |
||
| Rated voltage | 100 to 240 V AC, 50/60 Hz | |
| Power consumption | 30 W (24M), 32 W (40M), 35 W (60M) | |
| 24 V DC service power supply capacity2 | (24M, 40M, 60M) 400 mA When the CPU module's input circuit is powered by an external source: 500 mA (40 M), 550 mA (60 M), and 460 mA (24 M) | |
| Input/ Output | ||
| Input specifications | 5.3 mA/24 V DC (X10 and later: 4.0 mA/24 V DC) | |
| Output specifications | Relay output types: 30 V DC or less, 240 V AC or less (250 V AC or less in the event of noncompliance with CE, UL, or cUL Standards), 6 A or less/3 points common, 8 A or less/4 points common, and 2 A/1 pointMitsubishi PLC IQ-F Series authorized distributor in Nashik Transistor output types: 5 to 30 V DC, 0.5 A/1 point, 0.6 A or less, 3 points common, and 0.8 A or less, 4 points common. | |
| Input/output extension | Extension devices for the FX5 can be attached; however, the connector conversion module (FX5-CNV-IF) is needed in order to add an extension connection type. | |
1: If the CPU module configuration has the maximum number of connections available, the values indicate the situation in which the 24 V DC service power is consumed to the greatest extent. (Taking into account the input circuit's current)Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2: I/O modules draw current from the 24 V DC service power supply when they are attached.Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
| Item | Outline specifications | ||
|---|---|---|---|
| AC power supply type | DC power supply type | ||
| Power supply |
|||
| Rated voltage | 100 to 240 V AC, 50/60 Hz | 24 V DC | |
| Power consumption | 30 W (32M), 40 W (64M), 45 W (80M) | 30 W (32M), 40 W (64M), 45 W (80M) | |
| 24 V DC service power supply capacity2 | 300 mA⁚3 at 400 mA (32 M), 300 mA⁚3 at 600 mA (64 M, 80 M)When the CPU module's input circuit is powered by an external source, the following values are used: 480 mA [380 mA3] (32M), 740 mA [440 mA3] (64M), and 770 mA [470 mA3] (80M). | --- | |
| 24 V DC internal power supply capacity | --- | 480 mA (360 mA2) (32M), 740 mA (530 mA2) (64M), 770 mA (560 mA2) (80M) | |
| Input/ Output | |||
| Input specifications | 5.3 mA/24 V DC (X20 and later: 4.0 mA/24 V DC) | ||
| Output specifications | Relay output types: 30 V DC or less, 240 V AC or less (250 V AC or less in the event of noncompliance with CE, UL, or cUL Standards), 2 A/1 point, 8 A or less/4 points common, 8 A or less/8 points common 0.5 A/1 point, 0.8 A or less/4 points common, 1.6 A or less/8 points common, and 5 to 30 V DC are the transistor output types. | ||
| Input/output extension | It is possible to connect FX5 extension devices. However, in order to add a new type of extension connector, the FX5-CNV-IF connector conversion module is needed. | ||
1: If the CPU module configuration has the maximum number of connections available, the values indicate the situation in which the 24 V DC service power is consumed to the greatest extent. (Taking into account the input circuit's current)Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
2: When the power supply voltage falls between 16.8 and 19.2 V DC, the values in the parentheses() represent the power supply capacity that will be generated.Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
3: When the operating temperature is below 0°C, the values enclosed in brackets [] will be obtained.Mitsubishi PLC MELSEC IQ-F Series authorized distributor in Nashik
combined CPU, power supply, and I/O main unit in one. High-speed counters, positional outputs, Ethernet, and an SD card port are among the built-in features.
I/O modules come in a variety of I/O sizes and topologies, both with and without a built-in power supply.
Module for intelligent device station of the CC-Link IE Field Network. communication modules for RS-232, RS-485, and RS-422. The CC-Link master module of the FX3 series can also be linked.
Reborn as the MELSEC iQ-F Series, the Mitsubishi MELSEC-F Series offers improved high speed bus, more built-in functionalities, advanced support for SSCNETIII/H, and an improved engineering environment. The engineering programme GXWorks3 is used to set the programme and parameters.
