Mitsubishi plc melsec-f series io exception supplier in thane. The MELSEC-F series PLC combines the CPU, I/Os, and power supply into a single, small device. provides choices for I/O, analogue, location, and open network extension to satisfy the demands of a wide range of user applications.
Quote Now →
Mitsubishi plc melsec-f series io exception supplier in thane. "Extension blocks" and "powered extension units" are the two categories of FX series I/O extension devices.
"Powered extension units" extend I/O while also including a built-in power supply."Extension blocks" can be used to change the I/O in 8 or 16 point units for the main unit or powered extension units.Mitsubishi plc melsec-f series io exception supplier in thane.
I/O extension devices with an integrated power supply are known as powered extension units.
Similar to the main unit, an extension unit that is powered can be added after it to connect different I/O devices and special devices.Mitsubishi plc melsec-f series io exception supplier in thane.
| Model | Total number of points |
Number of input/output points Input/output type |
Applicable FX PLC | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | FX 3S |
FX 3G |
FX 3U |
FX 3GC |
FX 3UC |
|||||
| AC Power Type | |||||||||||
![]() |
FX2N-32ER | 32 points | 16 points | 24 V DC (sink) |
16 points | Relay | × | ○ | ○ | × | × |
| FX2N-32ER-ES/UL | 24 V DC (sink/ source) | ||||||||||
| FX2N-32ES | 24 V DC (sink) | Triac | |||||||||
| FX2N-32ET | 24 V DC (sink) | Transistor (sink) | |||||||||
| FX2N-32ET-ESS/UL | 24 V DC (sink/ source) | Transistor (source) | |||||||||
![]() |
FX2N-48ER | 48 points | 24 points | 24 V DC (sink) |
24 points | Relay | × | ○ | ○ | × | × |
| FX2N-48ER-ES/UL | DC24V (sink/ source) | ||||||||||
| FX2N-48ET | 24 V DC (sink) | Transistor (sink) | |||||||||
| FX2N-48ET-ESS/UL | 24 V DC (sink/ source) | Transistor (source) | |||||||||
![]() |
FX2N-48ER-UA1/UL | 48 points | 24 points | 100 V AC | 24 points | Relay | × | ○ | ○ | × | × |
| DC Power Type | |||||||||||
![]() |
FX2N-48ER-D | 48 points | 24 points | 24 V DC (sink) |
24 points | Relay | × | ○ | ○ | × | × |
| FX2N-48ER-DS | 24 V DC (sink/ source) | ||||||||||
| FX2N-48ET-D | 24 V DC (sink) | Transistor (sink) | |||||||||
| FX2N-48ET-DSS | 24 V DC (sink/ source) | Transistor (source) | |||||||||
The purpose of the expansion board is to add small-point input and output terminals to FX3S or FX3G PLCs. The PLC may incorporate the board.Mitsubishi plc melsec-f io exception supplier in thane
| Model | Total number of points |
Number of input/output points Input/output type |
Applicable FX PLC | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | FX 3S |
FX 3G |
FX 3U |
FX 3GC |
FX 3UC |
|||||
![]() |
FX3G-4EX-BD | 4 points |
4 points |
24 V DC (sink/ source) |
- | - | *1 ○ Max. 1 unit |
*2 ○ Max. 1 unit |
× | × | × |
![]() |
FX3G-2EYT-BD | 2 points |
- | - | 2 points |
Transistor (sink/ source) |
*1 ○ Max. 1 unit |
*2 ○ Max. 1 unit |
× | × | × |
*1: Compatible with FX3S versions 1.10 and up;Mitsubishi plc melsec-f io exception supplier in thane
*2: Compatible with FX3G versions 2.20 and up.Mitsubishi plc melsec-f io exception supplier in thane
| Model | Total number of points |
Number of input/output points Input/output type |
Applicable FX PLC | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | FX 3S |
FX 3G |
FX 3U |
FX 3GC |
FX 3UC |
|||||
| Input/output extension blocks | |||||||||||
![]() |
FX2N-8ER | 8 points | 4 points (8 devices are occupied.) |
24 V DC (sink) |
4 points (8 devices are occupied.) |
Relay | × | ○ | ○ | *1 *2 ○ |
*1 *2 ○ |
| FX2N-8ER-ES/UL | DC24V (sink/ source) | ||||||||||
| FX2N-8EX | 8 points | 24 V DC (sink) | - | - | |||||||
| FX2N-8EX-ES/UL | DC24V (sink/ source) | ||||||||||
| FX2N-8EX-UA1/UL | 100 V AC | ||||||||||
![]() |
FX2N-16EX | 16 points | 16 points | 24 V DC (sink) |
× | ○ | ○ | *1 *2 ○ |
*1 *2 ○ |
||
| FX2N-16EX-ES/UL | 24 V DC (sink/ source) | ||||||||||
| FX2N-16EX-C Connector input | 24 V DC (sink) | ||||||||||
| FX2N-16EXL-C Connector input | 5 V DC | ||||||||||
| Output extension blocks | |||||||||||
![]() |
FX2N-8EYR | 8 points | - | - | 8 points | Relay | × | ○ | ○ | *1 *2 ○ |
*1 *2 ○ |
| FX2N-8EYR-ES/UL | |||||||||||
| FX2N-8EYR-S-ES/UL | Relay (8 points /common) | ||||||||||
| FX2N-8EYT | Transistor (sink) | ||||||||||
| FX2N-8EYT-H | |||||||||||
| FX2N-8EYT-ESS/UL | Transistor (source) | ||||||||||
![]() |
FX2N-16EYR | 16 points | 16 points | Relay | × | ○ | ○ | *1 *2 ○ |
*1 *2 ○ |
||
| FX2N-16EYR-ES/UL | |||||||||||
| FX2N-16EYS | Triac | ||||||||||
| FX2N-16EYT | Transistor (sink) | ||||||||||
| FX2N-16EYT-ESS/UL | Transistor (source) | ||||||||||
| FX2N-16EYT-C Connector output | Transistor (sink) | ||||||||||
*1: FX2NC-CNV-IF or FX3UC-1PS-5V is needed in order to connect to FX3GC or FX3UC.Mitsubishi plc melsec-f io exception supplier in thane
*2: The ability to connect an I/O extension device may or may not be permitted, depending on the model name of the main unit. Consult the main unit's manual for more information.Mitsubishi plc melsec-f io exception supplier in thane
A connection cable, used to connect to the right side of the device in front of the extension block, is included with the extension block.
To extend the distance of the connection, please use the optional "extension cable (FX0N-30EC/FX0N-65EC)" and "connector conversion adapter (FX2N-CNV-BD)".Mitsubishi plc melsec-f io exception supplier in thane
|

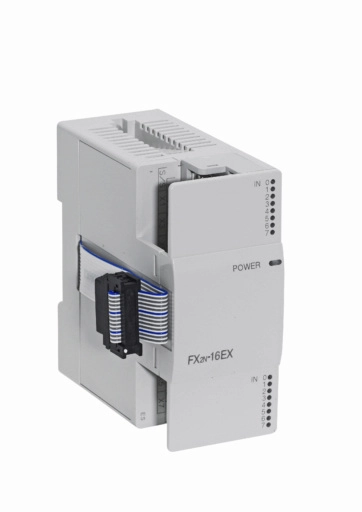

Mitsubishi PLC FX2N-16EX-ES/UL Dealer in ThaneSink/source, PLC, FX2N Modular Extension Unit; 16 inputs, 24 VDC |
|
Mitsubishi PLC FX2N-8ER-ES/UL Supplier in ThaneFour inputs and four relay outputs on a PLC, FX2N modular extension unit |
|
Mitsubishi PLC FX2N-8EYR-ES/UL Seller in ThaneEight relay outputs; PLC, FX2N Modular Extension Unit |
|

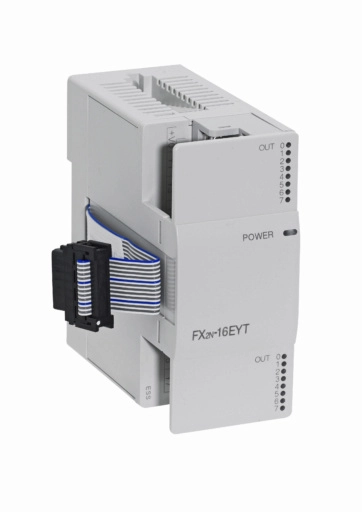

Mitsubishi PLC FX2N-16EYT-ESS/UL Wholesaler in Thane16 transistor outputs, FX2N modular extension unit, PLC |
|
Mitsubishi PLC FX2N-8EX-ES/UL Retailer in ThaneEight inputs; PLC, FX2N Modular Extension Unit |
|
Mitsubishi PLC FX2N-16EYR-ES/UL Trader in Thane16 relay outputs, FX2N modular extension unit, PLC |
|
Mitsubishi PLC FX2N-8EYT-ESS/UL Vendor in ThaneEight transistor outputs, FX2N modular extension unit, PLC |
|

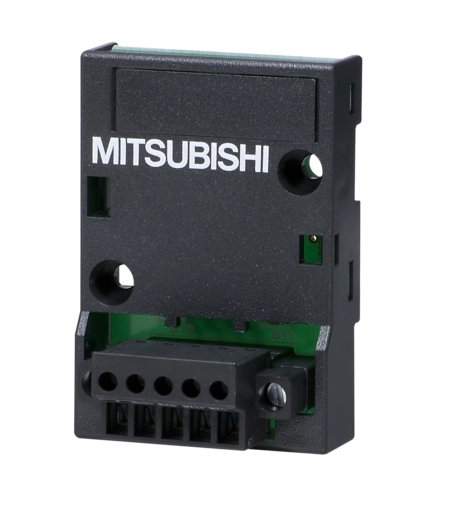

Mitsubishi PLC FX3G-2EYT-BD Stockist in ThaneBD Board 2 Transistor Outputs for FX3G |
|

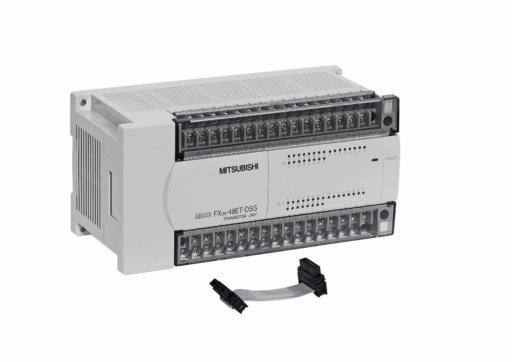

Mitsubishi PLC FX2N-48ET-DSS Authorized Dealer in ThaneFX2N Compact extension unit PLC, DC 24 V; 24 transistor outputs and 24 inputs |
|

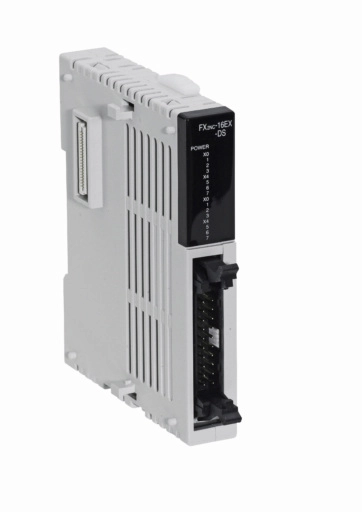

Mitsubishi PLC FX2NC-16EX-DS Authorized Distributor in Thane16 inputs; PLC, FX2NC Modular Extension Unit |
|

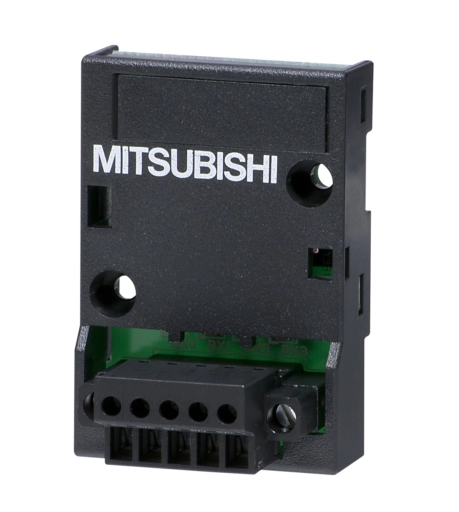

Mitsubishi PLC FX3G-4EX-BD Distributor in ThaneFX3G BD Board 4 DC24V Inputs |
|

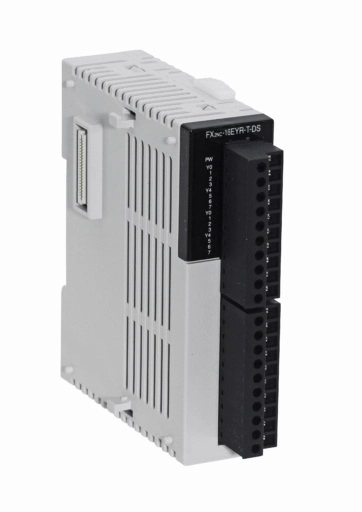

Mitsubishi PLC FX2NC-16EYR-T-DS Dealer in Thane16 relay outputs, FX2NC modular extension unit, PLC |
|
Mitsubishi PLC FX2NC-16EX-T-DS Supplier in Thane16 inputs; PLC, FX2NC Modular Extension Unit |
|

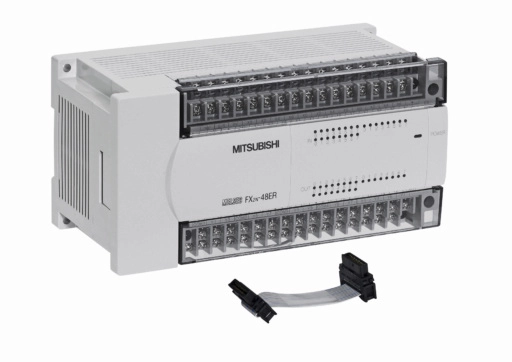

Mitsubishi PLC FX2N-48ER-ES-UL Seller in ThaneCompact extension unit, PLC, FX2N, AC 100-240 V; 24 relay outputs and 24 inputs |
|

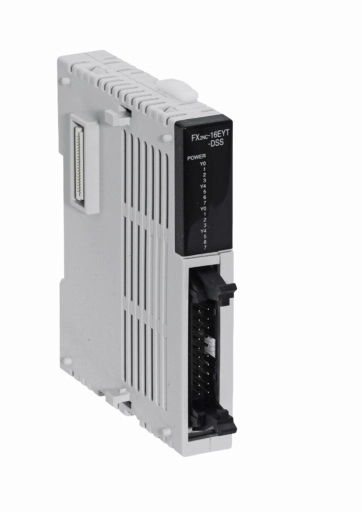

Mitsubishi PLC FX2NC-16EYT-DSS Wholesaler in ThaneModular extension unit, FX2NC PLC; 16 transistor outputs |
|
Mitsubishi PLC FX2NC-32EX-DS Trader in ThanePLC, FX2NC Modular extension unit; 32 inputs |
|

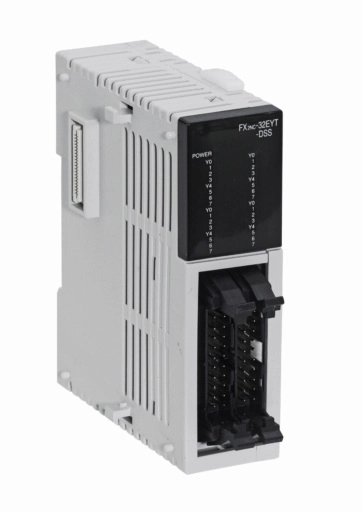

Mitsubishi PLC FX2NC-32EYT-DSS Vendor in ThaneModular extension unit, FX2NC PLC; 32 transistor outputs |
|
Mitsubishi PLC FX2N-16EYT Stockist in Thane16 transistor outputs on the FX2N modular extension unit, sink and PLC |
|
Mitsubishi PLC FX2N-16EX Authorized Dealer in ThaneModular extension unit, FX2N PLC; 16 inputs, 24 VDC; sink |
|

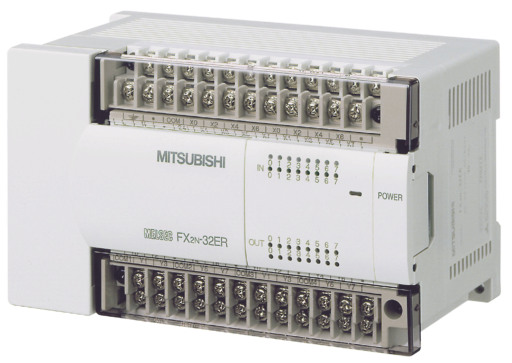

Mitsubishi PLC FX2N-32ER-ES/UL Authorized Distributor in ThaneAC 100-240 V PLC, FX2N Compact Extension Unit; 16 inputs, 16 relay outputs |
|

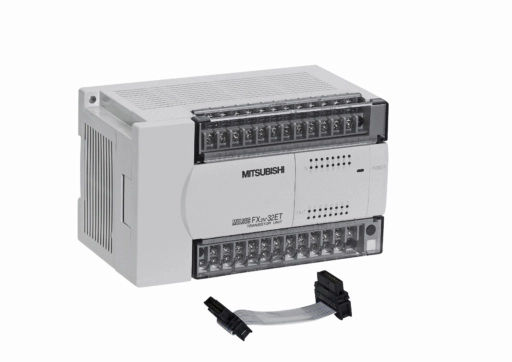

Mitsubishi PLC FX2N-32ET-ESS/UL Distributor in ThaneFX2N Compact Extension Unit PLC, DC 24 V; 24 relay outputs and 24 inputs |
|
Mitsubishi PLC FX2N-48ET-ESS/UL Dealer in ThanePLC, FX2N Compact Extension Unit; 24 Transistor Outputs, 24 Inputs; AC 100-240 V |
|

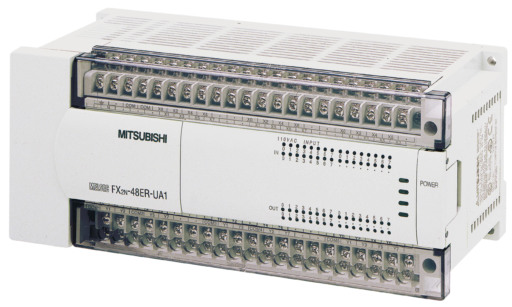

Mitsubishi PLC FX2N-48ER-UA1/UL Supplier in Thane24 relay outputs at 110V AC, 24 inputs at 100-240V AC, and an AC supply |
|
Mitsubishi PLC FX2N-8EYT Seller in ThaneFX2N Extension unit, sink, eight transistor outputs, and PLC |
|
Mitsubishi PLC FX2NC-16EYT Wholesaler in ThaneModular extension unit, FX2NC PLC; 16 transistor outputs |
|

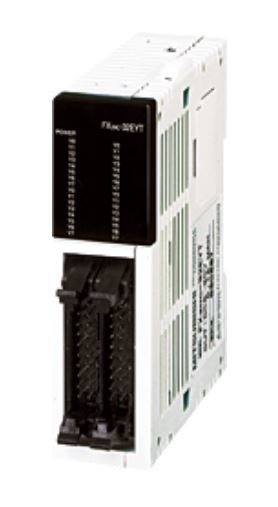

Mitsubishi PLC FX2NC-32EYT Trader in ThaneModular extension unit, FX2NC PLC; 32 transistor outputs |
Mitsubishi Plc is an exceptional supplier of the Melsec-F series in Thane. The CPU, I/Os, and power supply are all housed in one compact device—the MELSEC-F series PLC. satisfies the needs of a variety of user applications by offering options for I/O, analogue, location, and open network expansion.
There are many offers going on in our company that is why I cannot tell the exact price or if you want more information then contact us.
We courier it in 3 to 4 working days and then from there it will take as much time as it takes to reach your location for delivery.
If you buy any Mitsubishi product and find any defect in it or need to replace it, you can replace it within 7 days of delivery.
From then, it will take however long it takes to get to your area for delivery. We courier it in 3 to 4 working days.
We have all the products of Mitsubishi PLC IQ-F I/O Module series available. Click on the link given below
Mitsubishi plc melsec iq-f series i/o module authorized distributor in Nashik.
We are a Mitsubishi Dealer, Supplier, Distributor, and Drive System Dealer located in Mumbai, Pune, Nashik, Ahmedabad, Surat, Thane, Bangalore, and throughout India.
