Mitsubishi plc melsec-f network/communication supplier in thane. The MELSEC-F series PLC combines the CPU, I/Os, and power supply into a single, small device. provides choices for I/O, analogue, location, and open network extension to satisfy the demands of a wide range of user applications.
Quote Now →
Mitsubishi plc melsec-f network/communication supplier in thane. Networking based on control requirements is supported by the FX series, including high-speed networks with CC-Link and CC-Link/LT for less wiring.
Additionally, communication with RS-232C and RS-485 devices as well as an easily built, basic data link between FX series are available.Mitsubishi plc melsec-f network/communication supplier in thane.
| Model | Master station function |
Remote/slave function |
Distance | Applicable FX PLC | |||||
|---|---|---|---|---|---|---|---|---|---|
| FX 3S | FX 3G | FX 3U | FX 3GC | FX 3UC | |||||
 |
FX3U-16CCL-M*1 CC-Link master block (Master station) |
○ | × | 1,200 m maximum | × | ○ Max. 1 unit |
*4 ○ Max. 1 unit |
*2 ○ Max. 1 unit |
*2 *3 ○ Max. 1 unit |
 |
FX2N-32CCL CC-Link Interface block (Remote device station) |
× | ○ | 1,200 m maximum | × | ○ | ○ | *2 ○ |
*2 ○ |
 |
FX3U-64CCL CC-Link Interface block (Intelligent device station) |
× | ○ | 1,200 m maximum | × | ○ Max. 1 unit |
○ Max. 1 unit |
*2 ○ Max. 1 unit |
*2 *3 ○ Max. 1 unit |
*1: The FX2N-32ASI-M and the FX3U-16CCL-M cannot be utilised simultaneously.
The FX2N-16CCL-M and the FX3U-16CCL-M cannot be used simultaneously.
It is not possible to utilise FX2N-16CCL-M and FX3U-16CCL-M together.
[A remote I/O terminal]A maximum of 8 stations can be linked together, with each station occupying 32 PLC I/O points.
[Total number of intelligent + remote device stations]Although there can only be a maximum of 8 stations linked, there are 256 or fewer RX/RY points overall.Mitsubishi plc melsec-f network/communication supplier in thane
*2: FX2NC-CNV-IF or FX3UC-1PS-5V are needed when connecting to FX3GC FX3UC.Mitsubishi plc melsec-f network/communication supplier in thane
*3: Version 2.20 or later supports FX3UC.Mitsubishi plc melsec-f network/communication supplier in thane
*4: Version 2.20 or later supports FX3U.Mitsubishi plc melsec-f network/communication supplier in thane
| Model | Master station function |
Remote/slave function |
Applicable FX PLC | |||||
|---|---|---|---|---|---|---|---|---|
| FX 3S | FX 3G | FX 3U | FX 3GC | FX 3UC | ||||
 |
FX3UC-32MT-LT Built-in CC-Link/LT master |
○ | × | - | - | - | - | - |
 |
FX3UC-32MT-LT-2 Built-in CC-Link/LT master |
○ | × | - | - | - | - | - |
*1: When connecting to FX3GC，FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is required.
| Model | Applicable FX PLC | |||||
|---|---|---|---|---|---|---|
| FX 3S | FX 3G | FX 3U | FX 3GC | FX 3UC | ||
 |
CL1PAD1 Power Adapter |
× | ○ | ○ | ○ | ○ |
| CL1PSU-2A Dedicated Power Supply |
× | ○ | ○ | ○ | ○ | |
| Model | Applicable FX PLC | |||||
|---|---|---|---|---|---|---|
| FX 3S | FX 3G | FX 3U | FX 3GC | FX 3UC | ||
 |
FX3U-ENET-L | × | × | *1 ○ Max. 1 unit |
× | *1 *2 ○ Max. 1 unit |
 |
FX3U-ENET-ADP | *7 *8 ○ Max. 1 unit |
*3 *5 ○ Max. 1 unit |
*4 *6 ○ Max. 1 unit |
*3 ○ Max. 1 unit |
*4 *6 ○ Max. 1 unit |
*1: Version 2.21 or later supports FX3U▌FX3UC. Mitsubishi plc melsec-f network/communication supplier in thane
*2: FX2NC-CNV-IF or FX3UC-1PS-5V is needed to connect to FX3UC. Mitsubishi plc melsec-f network/communication supplier in thane
*3: Version 2.20 or later supports version FX3G and version FX3GC. Mitsubishi plc melsec-f network/communication supplier in thane
*4: FX3U and FX3UC supported starting with version 3.10 or later. Mitsubishi plc melsec-f network/communication supplier in thane
*5: FX3G-CNV-ADP is necessary for connecting to FX3G. Mitsubishi plc melsec-f network/communication supplier in thane
*6: A function expansion board is needed when connecting to FX3U or FX3UC-32MT-LT(-2). Mitsubishi plc melsec-f network/communication supplier in thane
*7: FX3S-CNV-ADP is needed in order to connect to FX3S. Mitsubishi plc melsec-f network/communication supplier in thane
*8: FX3U-ENET-ADP Ver.1.20 or later is necessary in order to connect to FX3S. Mitsubishi plc melsec-f network/communication supplier in thane
|

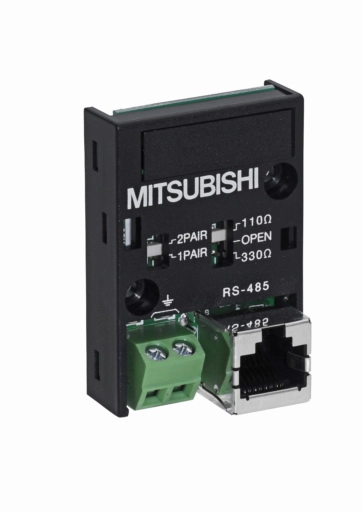

Mitsubishi PLC FX3G-485-BD-RJ Dealer in ThaneFX3G BD Board; RS485 Type; RJ45 Connector |
|

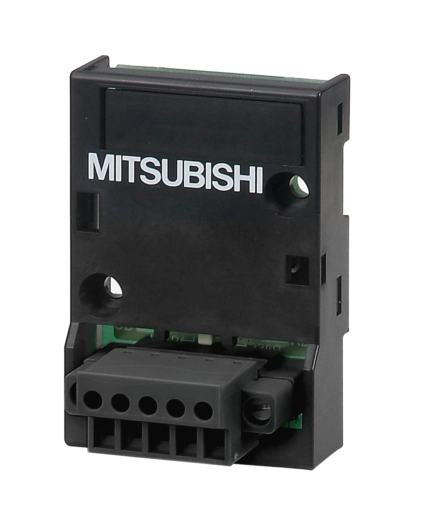

Mitsubishi PLC FX3G-485-BD Supplier in ThanePLC, FX3G Interface Module RS485, 1:n Multidrop, and up to 50 metres of network expansion |
|
Mitsubishi PLC FX3U-485-BD Seller in ThanePLC, 1:n Multidrop, FX3U RS485 Interface Module, and network expansion up to 50 metres |
|
Mitsubishi PLC FX3U-232-BD Wholesaler in ThaneFor MELSEC FX3U, PLC, RS232C Interface module |
|

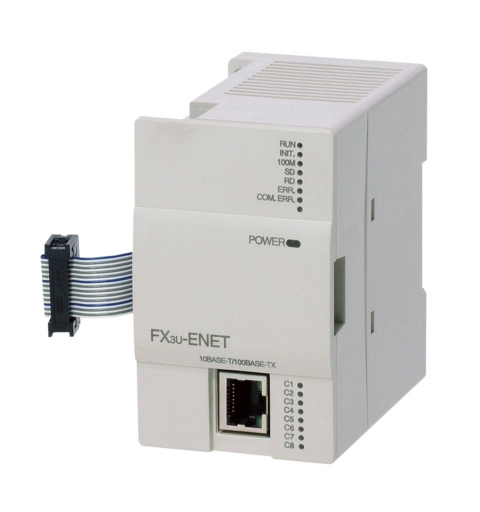

Mitsubishi PLC FX3U-ENET Retailer in ThanePLC, FX3U Ethernet 10/100 MBit communication module; RJ45, TCP/IP |
|
Mitsubishi PLC FX3U-ENET-ADP Trader in ThanePLC with FX3U Ethernet Module |
|
Mitsubishi PLC FX3U-16CCL-M Vendor in ThaneFX3U CC-Link Master Module, PLC FX Series |
|
Mitsubishi PLC FX3U-485ADP-MB Stockist in ThaneModbus RTU/ASCII (master/slave), FX3U RS485 Interface module, 1:n Multidrop PLC with |
|
Mitsubishi PLC FX3U-232ADP-MB Authorized Dealer in ThaneRS232C interface module for PLC, FX3U, with Modbus RTU/ASCII (master/slave) |
|

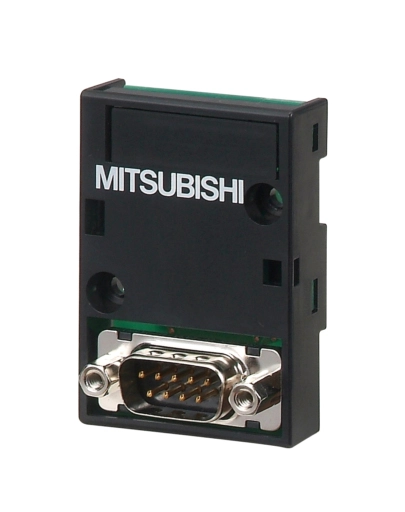

Mitsubishi PLC FX3G-232-BD Authorized Distributor in ThaneInterface module RS232C, PLC, FX3G |
|

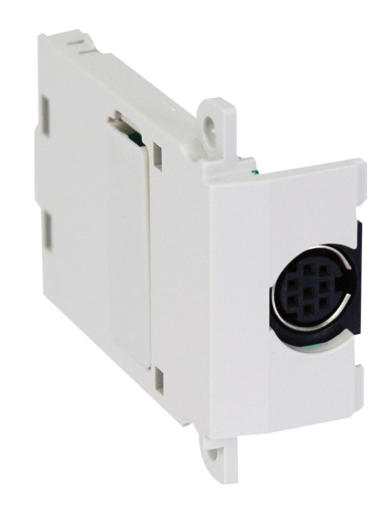

Mitsubishi PLC FX3U-422-BD Distributor in ThaneFor MELSEC FX3U, PLC, RS422 Interface module |
|
Mitsubishi PLC FX3U-CAN Dealer in ThaneFX Series PLC with FX3U CAN Module |
|
Mitsubishi PLC FX3U-ENET-P502 Supplier in ThanePLC, FX3U Ethernet 10/100 MBit communication module; RJ45, TCP/IP, MB-support |
|

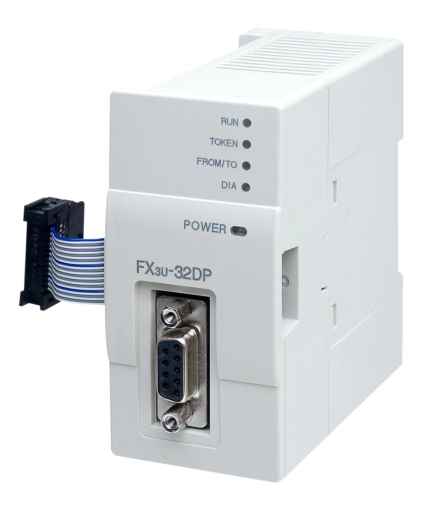

Mitsubishi PLC FX3U-32DP Seller in ThaneSlave-Station (DP), FX3U PROFIBUS Module, and PLC |
|

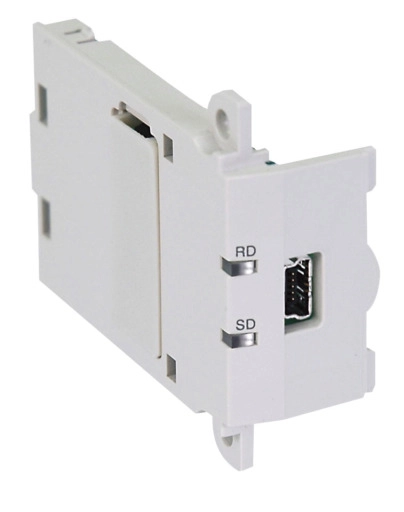

Mitsubishi PLC FX3U-USB-BD Wholesaler in ThaneUSB cable (3m) and PLC, FX3U USB Interface module included. |
|

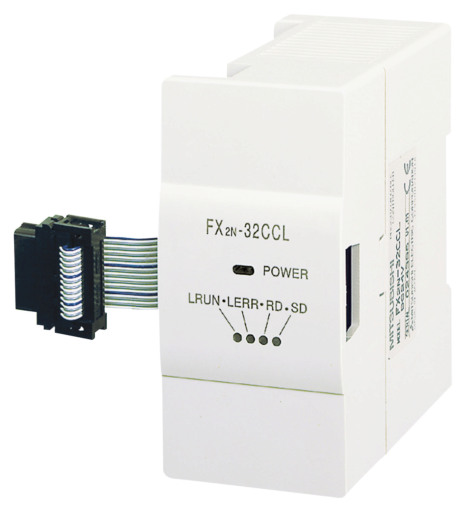

Mitsubishi PLC FX2N-32CCL Trader in ThaneSlave Modules; PLC, FX2N Communication Module for CC-Link |
|

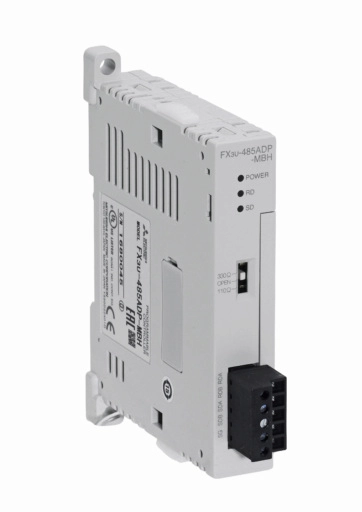

Mitsubishi PLC FX3U-485ADP-MBH Vendor in ThaneModbus RTU/ASCII (Master/Slave) PLC RS485 interface adapter extender |
|
Mitsubishi PLC FX2N-32DP-IF-D Stockist in ThanePLC, FX2N PROFIBUS-DP Communication Module; Slave-Remote-I/O Station, 24VDC |
|

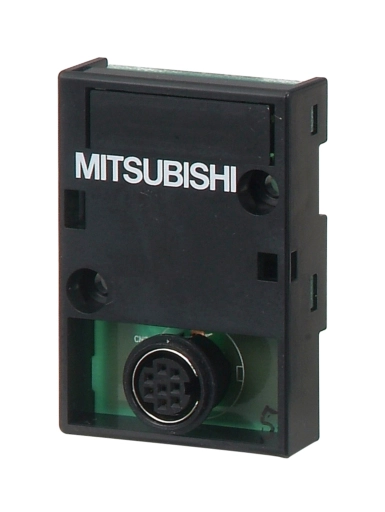

Mitsubishi PLC FX3G-422-BD Authorized Dealer in ThaneInterface adaptor RS422, PLC, FX3G |
|

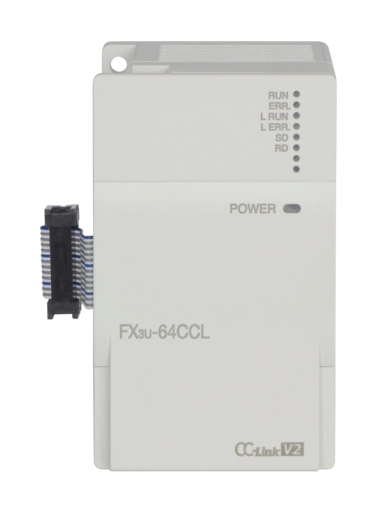

Mitsubishi PLC FX3U-64CCL Authorized Distributor in ThaneSlave Modules; PLC, FX3U Communication Module for CC-Link |
|

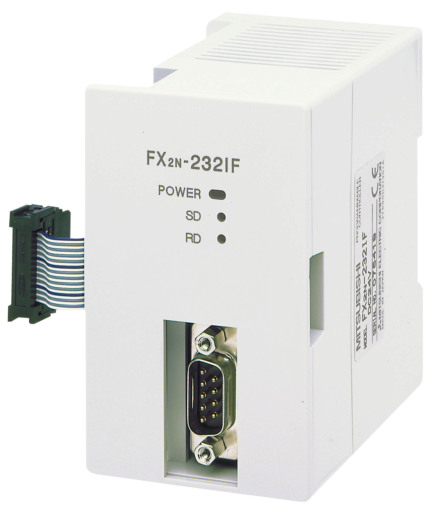

Mitsubishi PLC FX2N-232IF Distributor in ThaneMemory-equipped FX2N RS232C Interface module with PLC |
|

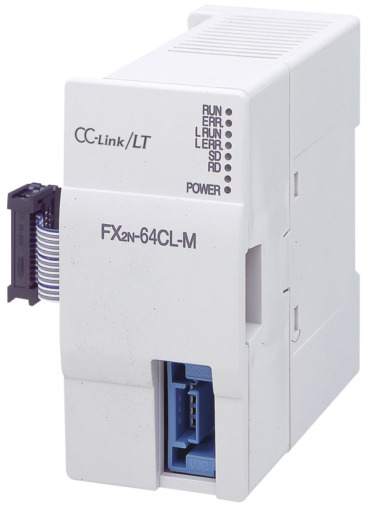

Mitsubishi PLC FX2N-64CL-M Dealer in ThaneMaster Module, CC-LINK/LT Module, and PLC |
|

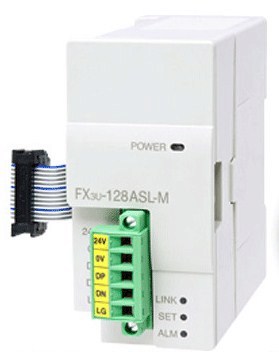

Mitsubishi PLC FX3U-128ASL-M Supplier in ThaneASLINK Master PLC, FX3U Communication Module |
|

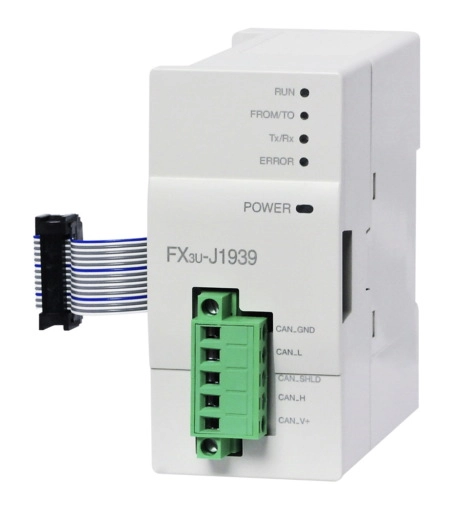

Mitsubishi PLC FX3U-J1939 Seller in ThaneFX3U 1939 communication module, PLC FX Series |
|

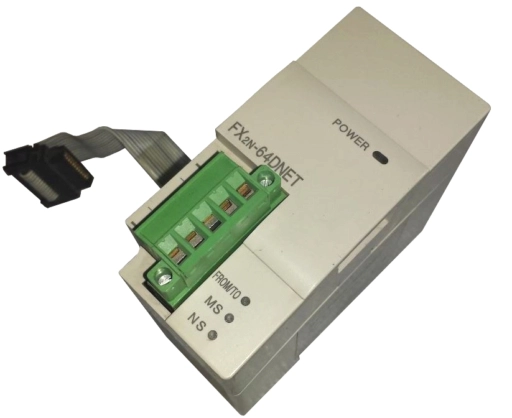

Mitsubishi PLC FX2N-64DNET Wholesaler in ThaneDeviceNet modules for PLC, FX2N, and slave modules |
Mitsubishi Plc is a Thane-based network/communication supplier. A single, compact device that houses the CPU, I/Os, and power supply is the MELSEC-F series PLC. offers options for location, open network extension, analogue, I/O, and other features to meet the needs of various user applications.
There are many offers going on in our company that is why I cannot tell the exact price or if you want more information then contact us.
We courier it in 3 to 4 working days and then from there it will take as much time as it takes to reach your location for delivery.
If you buy any Mitsubishi product and find any defect in it or need to replace it, you can replace it within 7 days of delivery.
From then, it will take however long it takes to get to your area for delivery. We courier it in 3 to 4 working days.
We have all the products of Mitsubishi PLC IQ-F NETWORK Module series available. Click on the link given below
