Mitsubishi plc iq-r i/o module authorized distributor in hyderabad. It is critical to develop automation systems that guarantee high productivity and constant product quality if one is to compete in fiercely competitive marketplaces. Three steps are being taken by MELSEC iQ-R to address these issues: lowering TCO while raising existing asset reuse and reliability.

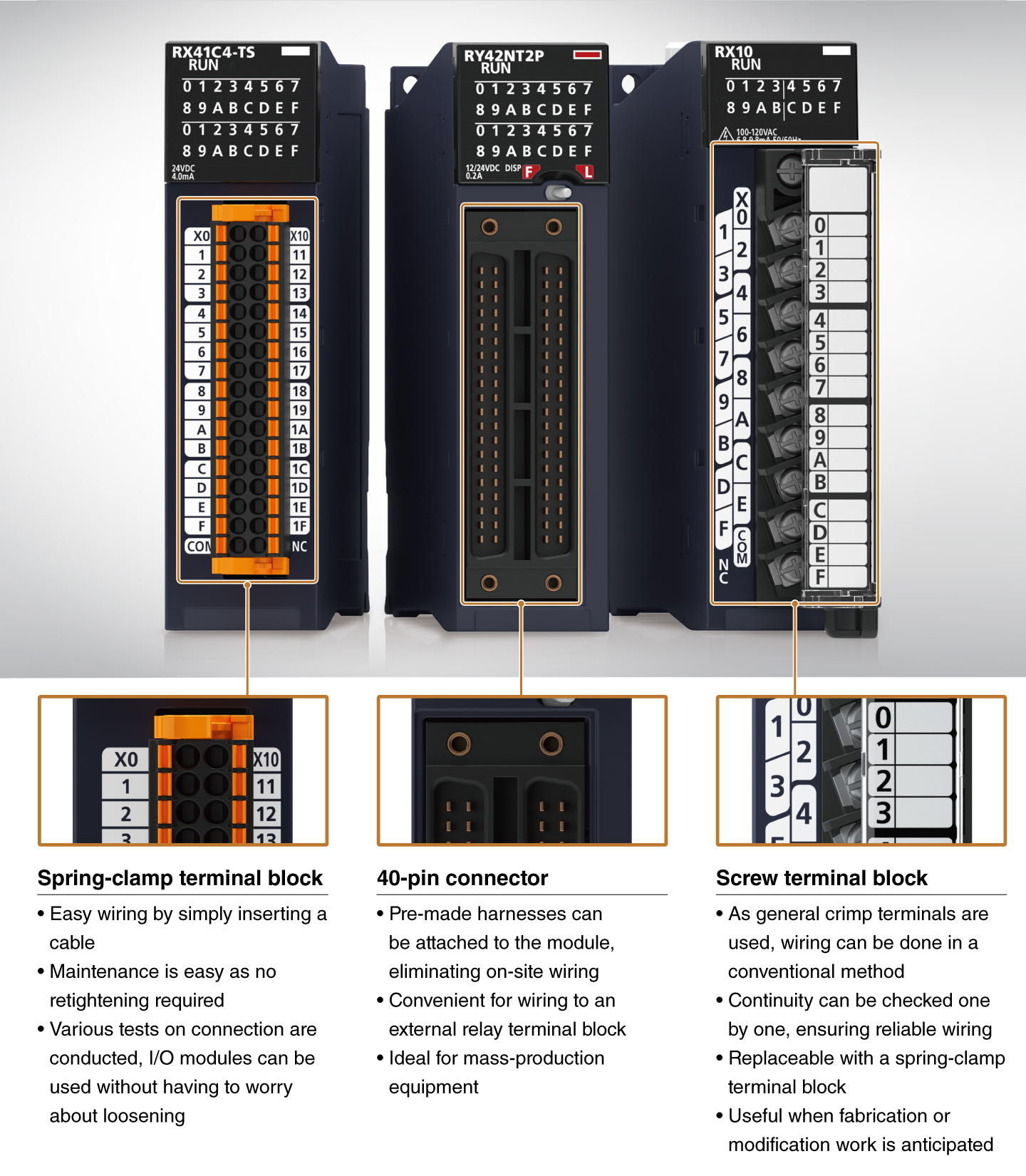

Quote Now →Mitsubishi plc iq-r i/o module authorized distributor in hyderabad. The automation system's senses are digital I/O modules, which give the controller an interface for a variety of processes. It is simple to connect devices like switches, indicator lights, and sensors to the control system. In comparison to the current Series, the MELSEC iQ-R Series I/O modules offer improved functionalities. One module can handle several applications, which lowers implementation and maintenance costs.Modules can be chosen based on specifications including the number of points, convenience of wiring, and features of the devices to be linked.
Input module specifications
| Item | DC input | ||||
|---|---|---|---|---|---|
| RX40C7-TS | RX40C7 | RX41C4-TS | RX41C4 | RX42C4 | |
| Number of input points | 16 | 16 | 32 | 32 | 64 |
| Rated input voltage (V DC) | 24 | 24 | 24 | 24 | 24 |
| Input current (TYP.) (mA) | 7.0 | 7.0 | 4.0 | 4.0 | 4.0 |
| Response time (ms) | 0.1…70 | 0.1…70 | 0.1…70 | 0.1…70 | 0.1…70 |
| Common terminal arrangement(points/common) | 16 (positive/ negativecommon shared) |
16 (positive/ negativecommon shared) |
32 (positive/ negativecommon shared) |
32 (positive/ negativecommon shared) |
32 (positive/ negativecommon shared) |
| Interrupt function | ● | ● | ● | ● | ● |
| External interface*1 | |||||
| Spring-clamp terminal block | ● | - | ● | - | - |
| 18-point screw terminal block | - | ● | - | - | - |
| 40-pin connector | - | - | - | ● | ●(2×) |
| Item | DC input | ||
|---|---|---|---|
| RX70C4 | RX71C4 | RX72C4 | |
| Number of input points | 16 | 32 | 64 |
| Rated input voltage (V DC) | 5/12 | 5/12 | 5/12 |
| Input current (TYP.) (mA) | 1.7 (5 V DC) 4.8 (12 V DC) |
1.7 (5 V DC) 4.8 (12 V DC) |
1.7 (5 V DC) 4.8 (12 V DC) |
| Response time (ms) | 0.2…70 | 0.2…70 | 0.2…70 |
| Common terminal arrangement (points/common) |
16 (positive/negative common shared) |
32 (positive/negative common shared) |
32 (positive/negative common shared) |
| Interrupt function | ● | ● | ● |
| External interface*1 | |||
| 18-point screw terminal block | ● | - | - |
| 40-pin connector | - | ● | ●(2x) |
| Item | DC high-speed input | DC input with diagnostic functions |
|||
|---|---|---|---|---|---|
| RX40PC6H | RX40NC6H | RX41C6HS | RX61C6HS | RX40NC6B | |
| Number of input points | 16 | 16 | 32 | 32 | 16 |
| Rated input voltage (V DC) | 24 | 24 | 24 | 5 | 24 |
| Input current (TYP.) (mA) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| Response time | 5 µs…70 ms | 5 µs…70 ms | 5 µs…70 ms | 5 µs…70 ms | 5 µs…70 ms |
| Common terminal arrangement | 8 (positive common) |
8 (positive common) |
32 (positive/negative common shared) |
32 (positive/negative common shared) |
16 (negative common) |
| Interrupt function | ● | ● | ● | ● | ● |
| SIL2 mode | – | – | – | – | ●*2 |
| Diagnostic function | |||||
| Input disconnection detection | – | – | – | – | ● |
| External interface*1 | |||||
| 18-point screw terminal block | ● | ● | – | – | ● |
| 40-pin connector | - | - | ● | ● | - |
| Item | AC input | ||
|---|---|---|---|
| RX28 | RX10-TS | RX10 | |
| Number of input points | 8 | 16 | 16 |
| Rated input voltage, frequency | 100…240 V AC, 50/60 Hz | 100…120 V AC, 50/60 Hz | 100…120 V AC, 50/60 Hz |
| Input current (RMS.TYP.)(mA) | 16.4 (200 V AC, 60 Hz) 13.7 (200 V AC, 50 Hz) 8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
| Response time (ms) | ≤ 20 | ≤ 20 | ≤ 20 |
| Common terminal arrangement | 8 | 16 | 16 |
| Interrupt function | ● | ● | ● |
| External interface*1 | |||
| Spring-clamp terminal block | – | ● | – |
| 18-point screw terminal block | ● | – | ● |
|

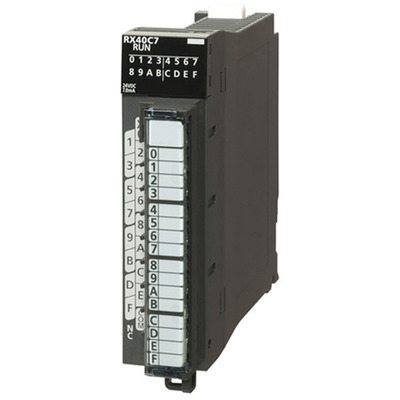

Mitsubishi PLC RX40C7 Dealer in HyderabadPLC iQ-R Series; 16-point DC input module |
|
Mitsubishi PLC RX41C4-TS Supplier in HyderabadDC input module, 32 points, spring clamp termination; PLC iQ-R Series |
|
Mitsubishi PLC RX41C4 Seller in HyderabadPLC iQ-R Series; 32-point DC input module |
|

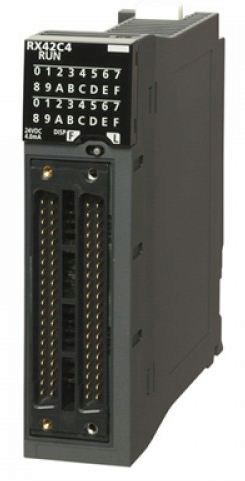

Mitsubishi PLC RX42C4 Wholesaler in HyderabadDigital input module, 24 VDC, 64 points, two 40-pin sockets, PLC iQ-R Series |
|

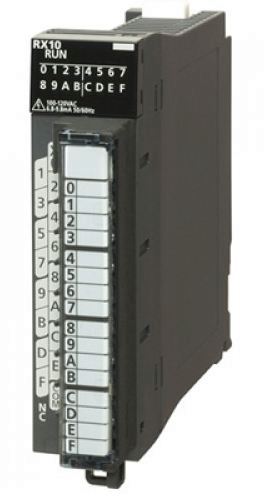

Mitsubishi PLC RX10 Trader in HyderabadPLC iQ-R Series; 16-point AC input module |
|

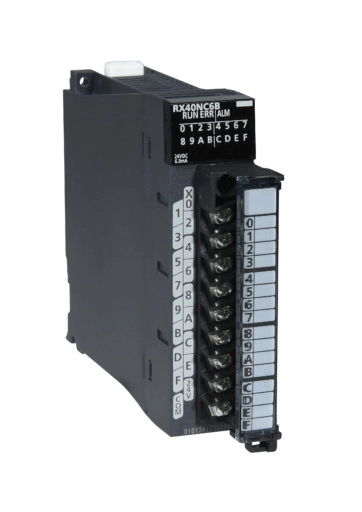

Mitsubishi PLC RX40NC6B Retailer in HyderabadPLC iQ-R Series: Diagnostic-capable Input Module |
|

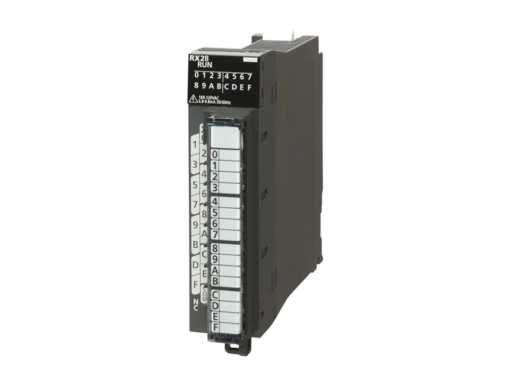

Mitsubishi PLC RX28 Distributor in HyderabadPLC iQ-R Series; 8-point AC input module |
|
Mitsubishi PLC RX40C7-TS Authorized Distributor in HyderabadDC input module, 16 points, spring clamp termination; PLC iQ-R Series |
|

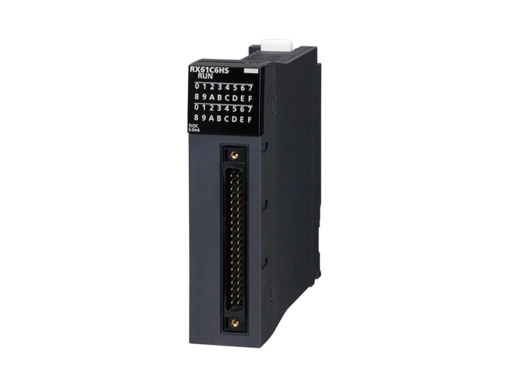

Mitsubishi PLC RX61C6HS Authorized Dealer in HyderabadPLC iQ-R Series; high-speed DC input module |
|

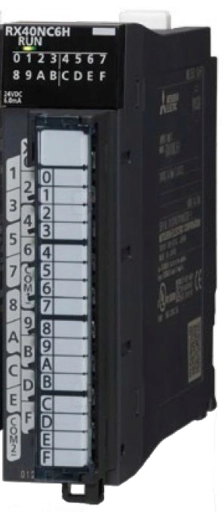

Mitsubishi PLC RX40NC6H Stockist in HyderabadPLC iQ-R Series; 16-point, negative, DC high-speed input |
|

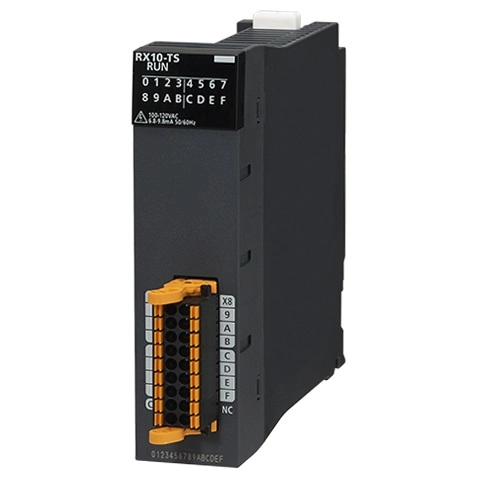

Mitsubishi PLC RX10-TS Vendor in HyderabadPLC iQ-R Series; 16-point, spring-clamp terminal, AC input module, 100–120V |
|

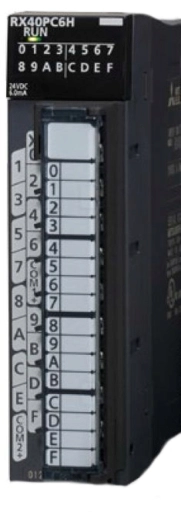

Mitsubishi PLC RX40PC6H Dealer in HyderabadPLC iQ-R Series; Positive, 16-point, DC high-speed input |
|

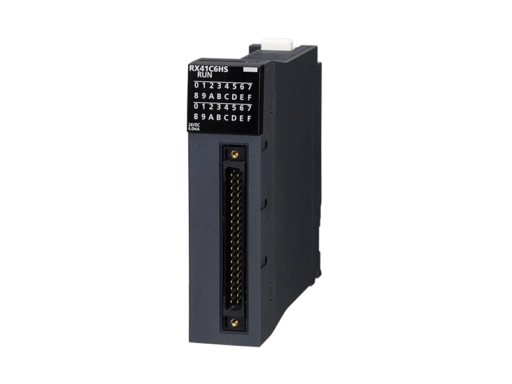

Mitsubishi PLC RX41C6HS Supplier in HyderabadPLC iQ-R Series; 32 DC24V6mA high-speed DC input module Eingangsmodul |
|
Mitsubishi PLC RX70C4 Seller in Hyderabad16-input input module with 5–12 V DC input (1,7–4.8 mA) and common positive/negative |
|

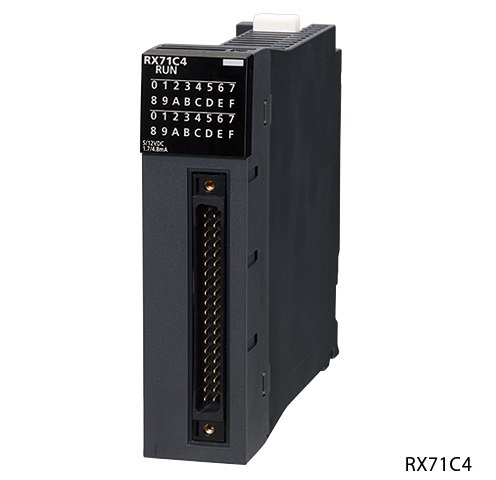

Mitsubishi PLC RX71C4 Wholesaler in Hyderabad32 inputs, 5–12 V DC input (1,7–4.8 mA), common positive and negative |
|

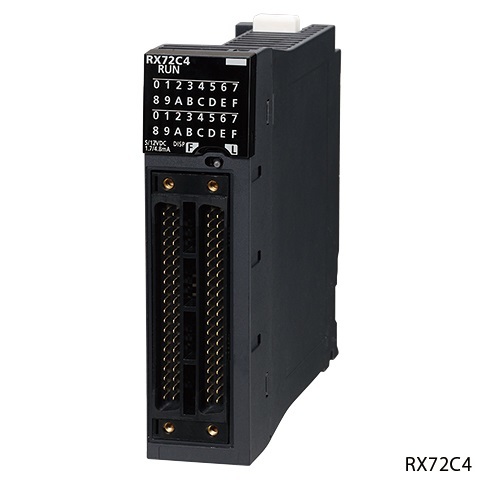

Mitsubishi PLC RX72C4 Retailer in Hyderabad64-input input module with 5–12 V DC input (1,7–4.8 mA) and common positive/negative |
|

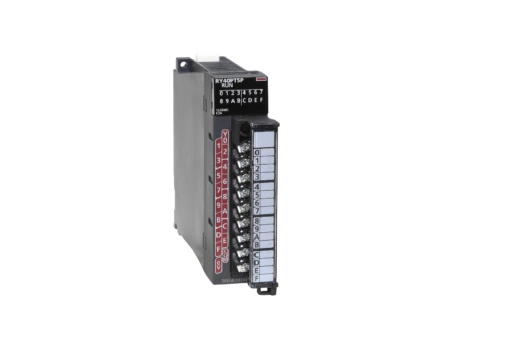

Mitsubishi PLC RY40PT5P Trader in HyderabadTransistor (source) output module, 16-point PLC iQ-R Series |
|

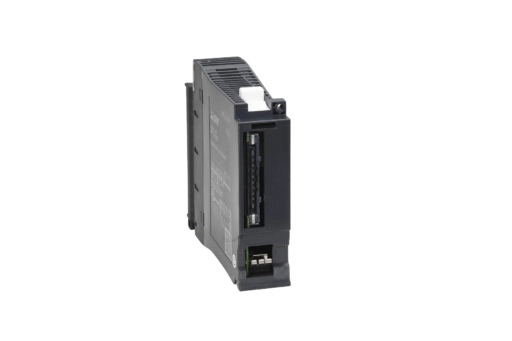

Mitsubishi PLC RY10R2 Stockist in HyderabadPLC iQ-R Series; 16-point, 24-volt DC/240-volt AC 2 amp relay output module with screw terminal |
|

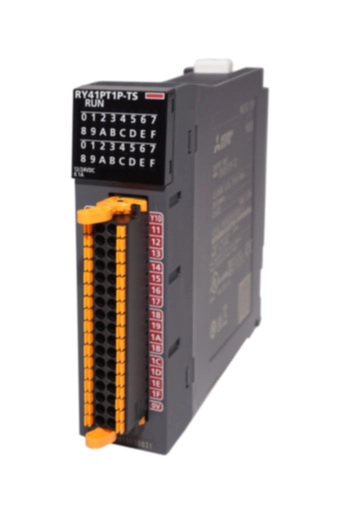

Mitsubishi PLC RY41PT1P-TS Vendor in HyderabadPLC iQ-R; Spring clamp, 12/24 VDC, 0.01 A, 32 point source, transistor output mod. |
|

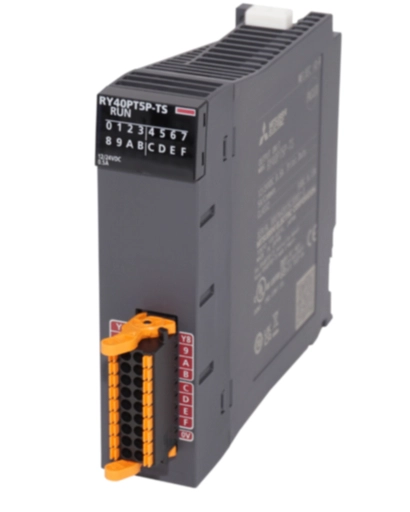

Mitsubishi PLC RY40PT5P-TS Authorized Dealer in HyderabadPLC iQ-R; Spring clamp, 12/24 VDC, 0. 5 A, 16 point source, transistor output mod. |
|

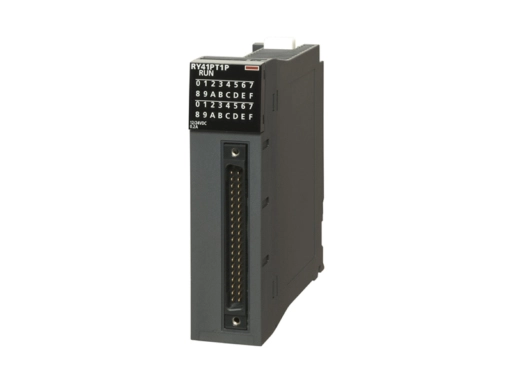

Mitsubishi PLC RY41PT1P Distributor in HyderabadTransistor (source) output module, 32 points; PLC iQ-R Series |
|

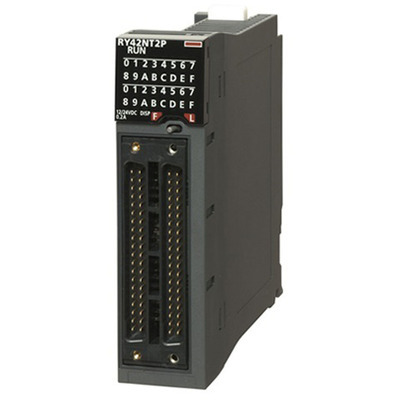

Mitsubishi PLC RY42NT2P Authorized Distributor in HyderabadTransistor (sink) output module, 64-point PLC iQ-R Series |
|

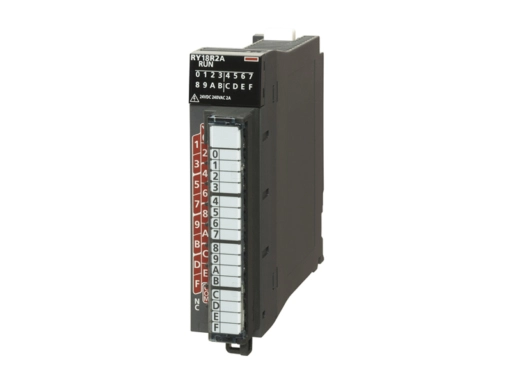

Mitsubishi PLC RY18R2A Dealer in HyderabadPLC iQ-R Series; 8-point relay output module |
|

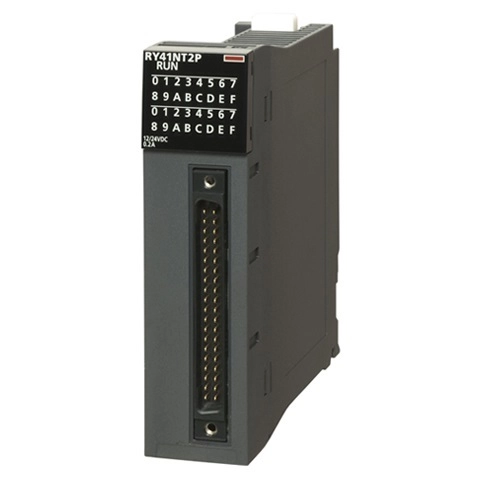

Mitsubishi PLC RY41NT2P Supplier in HyderabadTransistor (sink) output module, 32 points; PLC iQ-R Series |
|

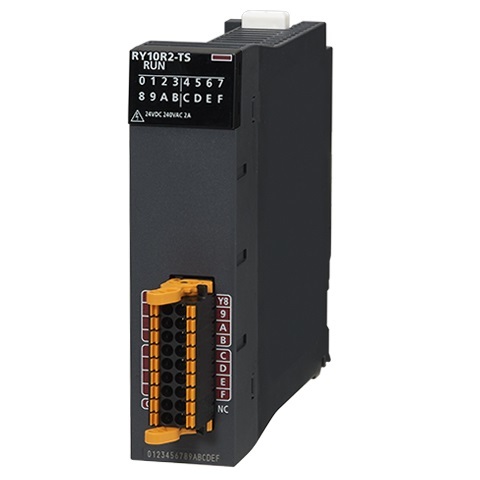

Mitsubishi PLC RY10R2-Ts Seller in HyderabadPLC iQ-R; Spring clamp, 16-point, 24VDC/240VAC, 2A relay output module |
|

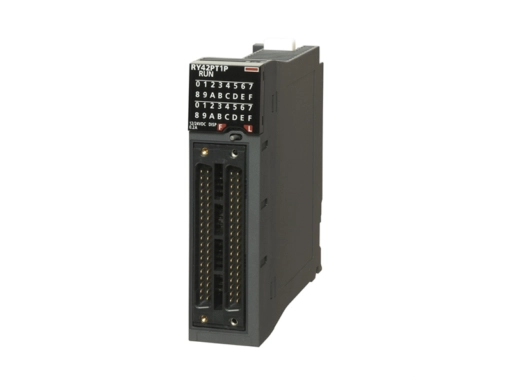

Mitsubishi PLC RY42PT1P Wholesaler in HyderabadTransistor (source) output module, 64-point PLC iQ-R Series |
|

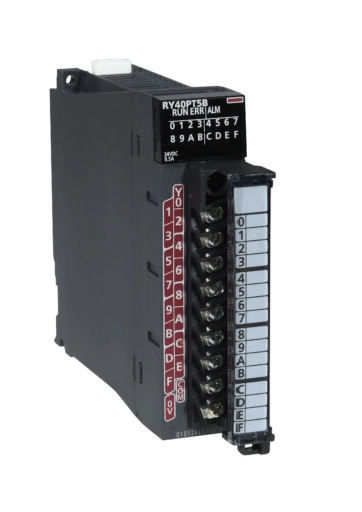

Mitsubishi PLC RY40PT5B Retailer in HyderabadPLC Transistor Output Module; iQ-R Series |
|

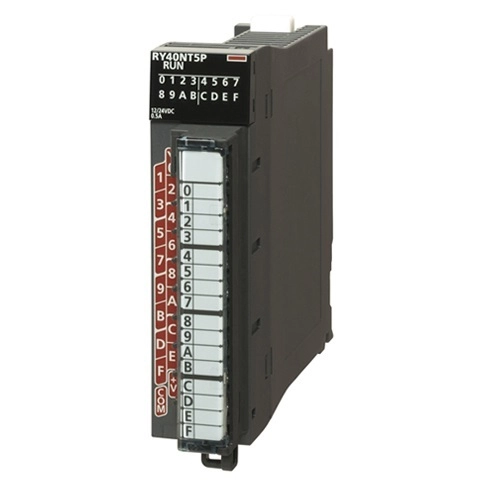

Mitsubishi PLC RY40NT5P Trader in HyderabadTransistor (sink) output module, 16-point PLC iQ-R Series |
|

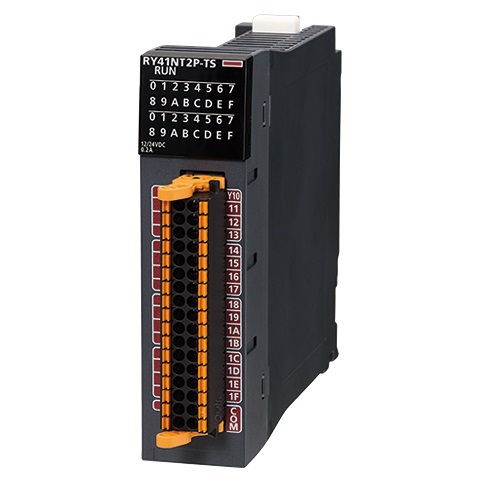

Mitsubishi PLC RY41NT2P-TS Vendor in HyderabadPLC iQ-R; Transistor output module, sink, spring clamp, 12/24VDC, 0,2A |
|

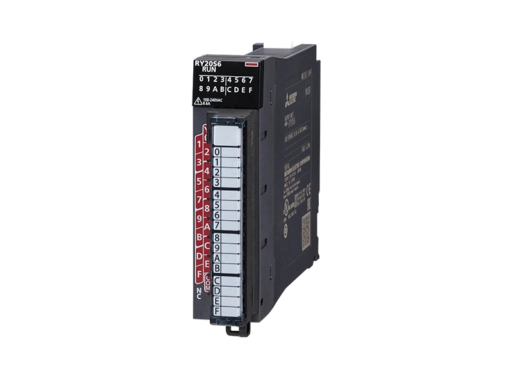

Mitsubishi PLC RY20S6 Stockist in HyderabadPLC iQ-R Series; 16-point triac output module |
|

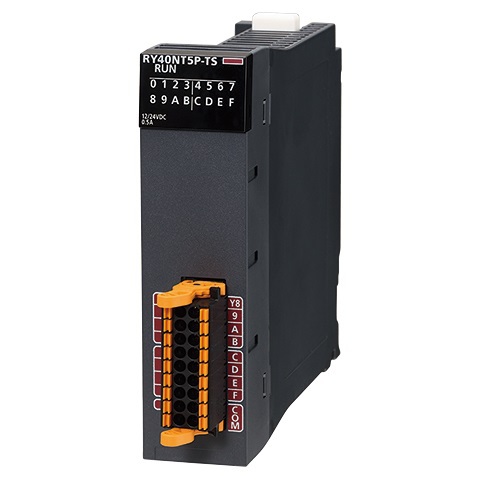

Mitsubishi PLC RY40NT5P-TS Distributor in HyderabadPLC iQ-R; Transistor output module, zero to sixteen points, sink, spring clamp, and 12/24 VDC |
|

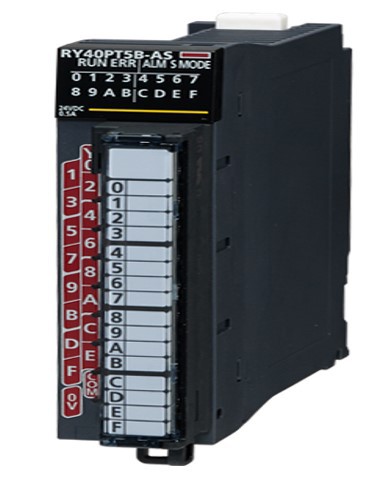

Mitsubishi PLC RY40PT5B-AS Authorized Dealer in HyderabadSIL2-compliant PLC iQ-R Series Transistor Output Module |
|

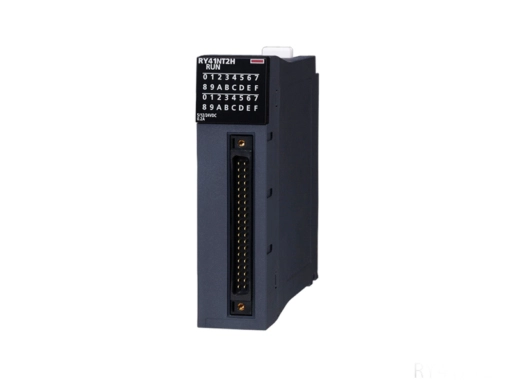

Mitsubishi PLC RY41NT2H Authorized Distributor in HyderabadHigh Speed Transistor (sink) output module, 32 points; PLC iQ-R Series |
|
Mitsubishi PLC RY41PT2H Dealer in HyderabadPLC iQ-R Series; high-speed transistor (source) output module |
|

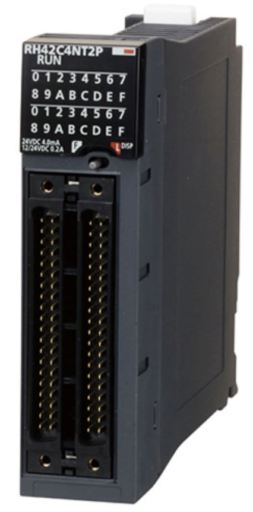

Mitsubishi PLC RH42C4NT2P Supplier in HyderabadPLC iQ-R Series; 32-point, DC input, transistor (sink) output, integrated I/O module |
It is critical to develop automation systems that guarantee high productivity and constant product quality if one is to compete in fiercely competitive marketplaces. Three steps are being taken by MELSEC iQ-R to address these issues: lowering TCO while raising existing asset reuse and reliability.
There are many offers going on in our company that is why I cannot tell the exact price or if you want more information then contact us.
We courier it in 3 to 4 working days and then from there it will take as much time as it takes to reach your location for delivery.
If you buy any Mitsubishi product and find any defect in it or need to replace it, you can replace it within 7 days of delivery.
From then, it will take however long it takes to get to your area for delivery. We courier it in 3 to 4 working days.
