Mitsubishi plc iq-r network module authorized distributor in hyderabad. It is critical to develop automation systems that guarantee high productivity and constant product quality if one is to compete in fiercely competitive marketplaces. Three steps are being taken by MELSEC iQ-R to address these issues: lowering TCO while raising existing asset reuse and reliability.
Quote Now →Mitsubishi plc iq-r network module authorized distributor in hyderabad. The array of network modules meets the demands of modern industrial networks, which include flexible wiring, big capacity data management, high-speed control, and simplified setup and maintenance needed in the production process.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
Mitsubishi plc iq-r series network module. combines real-time control communications on the same network with information communications from IT systems.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
When an error occurs, detailed time-series analysis can be performed between connected stations since highly accurate time synchronisation within ±1 μs is achievable.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
Mitsubishi plc iq-r series network module. High-precision motion control with only a 31.25 μs*1 minimum communication cycle time
*1. When the motion module (RD78GH) is in its fast operation mode, this value is reached. Please see the MELSEC iQ-R Motion Module User's Manual (Application) (IB-0300411ENG) for further information.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
Realises a huge data capacity of 128K words (maximum link points) and high-speed transmission at 1 Gbps.
Highly-reliable distributed control system is made possible by many functionalities like an external power source and a dual-loop optical network.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
permits I/O control, safety control, motion control, and communication between various controllers.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
enables flexible wire topologies based on how production lines, machinery, and other devices are arranged.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
*1 The most suitable networks for any application can be chosen.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
| Item |  |
 |
 |
|||
|---|---|---|---|---|---|---|
| Communication cable | Ethernet cable | Ethernet cable | Optical fiber cable | Ethernet cable | ||
| Main applications |
Between controllers | ● | ● | ● | ||
| Acrossfields | General control | ● | – | ● | ||
| Motion control | ● | – | ● | |||
| Safety control | ● | – | ● | |||
| Transmission speed | 1 Gbps/100 Mbps | 1 Gbps | 1 Gbps | |||
| Max. number of connectable stations | 121*3 | 120 | 121*3 | |||
| Mixed TCP/IP communication | ● | – | – | |||
| Maximum link points per network |
Remote input (RX), remote output (RY) |
16384 points、2KB | – | 16384 points, 2KB | ||
| Remote register (RWw, RWr) |
8192 points、16KB | – | 8192 points、16KB | |||
| Link relay (LB) | 32768 points, 4KB | 32768 points, 4KB For extended points: 65536 points, 8KB |
– | |||
| Link register (LW) | 16384 points, 32KB | 131072 points, 256KB For extended points: 262144 points, 512KB |
– | |||
| Link input (LX), link output (LY) |
– | 8192 points, 1KB | – | |||
| Max. station-to-station distance | 100 m | 100 m | 550 m | 100 m | ||
| Network topology/overall cable distance |
Line | 12000 m | 11900 m | – | 12000 m | |
| Ring | 12100 m | 12000 m | 66000 m | 12100 m | ||
| Star | Depending on how the system is configured |
Depends on the system configuration |
– | Depends on the system configuration |
||
| : Line and star combination |
Depends on the system configuration |
Depends on the system configuration |
– | Depends on the system configuration |
||
*2. Please consult the applicable product manuals for additional details regarding the performance parameters of the modules.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
*3. Has a master station built in.Mitsubishi plc iq-r series network module authorized distributor in hyderabad
|
Mitsubishi PLC RJ71GN11-T2 Dealer in HyderabadMaster/slave station; CC-Link IE TSN; iQ-R Series; PLC Network Interface Module |
|
Mitsubishi PLC RJ71EN71 Supplier in HyderabadEthernet interface, G/100M/10Mbps multiple net, PLC iQ-R Series.-IE/CC-Link Ethernet |
-seller-in-hyderabad.webp "Mitsubishi plc rj71en71(c) seller in hyderabad")
|
Mitsubishi PLC RJ71EN71(C) Seller in HyderabadMultinet.-Ethernet/CC-Link IE, coat; PLC iQ-R Series |
|

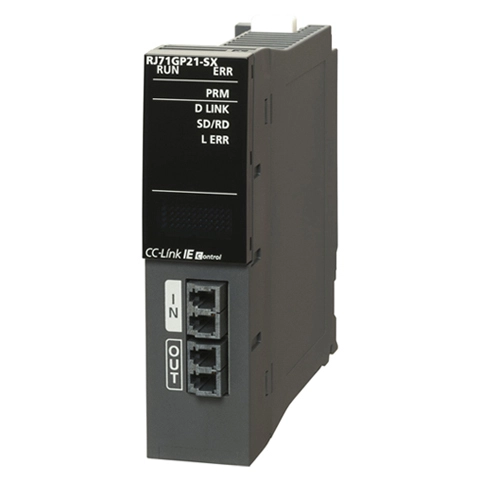

Mitsubishi PLC RJ71GP21-SX Wholesaler in HyderabadControl/Normal station, CC-Link IE Control network, PLC iQ-R Series, and optical cable |
-trader-in-hyderabad.webp "Mitsubishi plc rj71gp21-sx(c) trader in hyderabad")
|

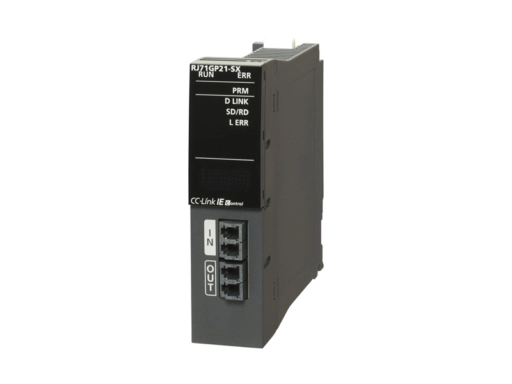

Mitsubishi PLC RJ71GP21-SX(C) Trader in HyderabadPLC iQ-R Series; optical cable, coat; CC-Link IE Control/Normal station |
|
Mitsubishi PLC RJ71GP21S-SX Retailer in HyderabadMaster/Local Unit PLC iQ-R CC-Link IE, 1Gbps Fibre Optic GI, ext Powersuppl |
|

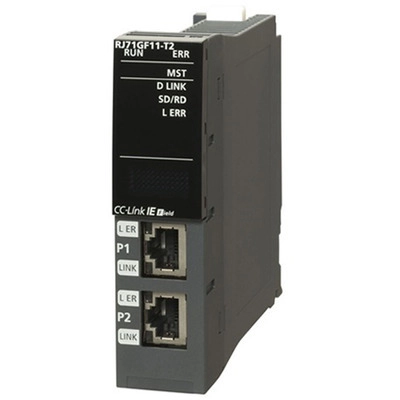

Mitsubishi PLC RJ71GF11-T2 Distributor in HyderabadMaster/Local station; CC-Link IE Field network module; PLC iQ-R Series |
|

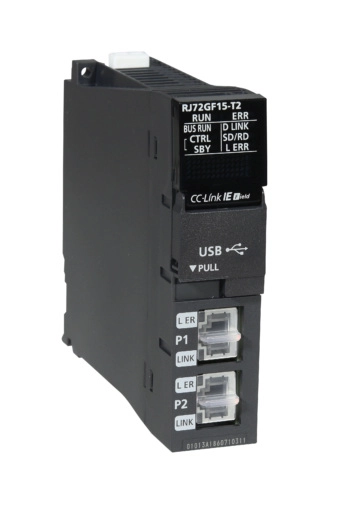

Mitsubishi PLC RJ72GF15-T2 Authorized Distributor in HyderabadPLC iQ-R Series; Headstation CC-Link IE |
-authorized-dealer-in-hyderabad.webp "Mitsubishi plc rj72gf15-t2(c) authorized dealer in hyderabad")
|
Mitsubishi PLC RJ72GF15-T2(C) Authorized Dealer in HyderabadCC-Link IE Headstation; covered PLC iQ-R Series |
-stockist-in-hyderabad.webp "Mitsubishi plc rj71gf11-t2(c) Stockist in hyderabad")
|
Mitsubishi PLC RJ71GF11-T2(C) Stockist in HyderabadMaster/Local station, coat, CC-Link IE Field network, PLC iQ-R Series |
|
Mitsubishi PLC RJ61BT11 Vendor in HyderabadPLC iQ-R Series; Master/Local station CC-Link Ver.2, CC-Link module |
-dealer-in-hyderabad.webp "Mitsubishi plc rj61bt11(c) dealer in hyderabad")
|
Mitsubishi PLC RJ61BT11(C) Dealer in HyderabadCC-Link, Master/Local station; PLC iQ-R Series CC-Link Version 2, coat |
|
Mitsubishi PLC RJ71C24-R4 Supplier in HyderabadPLC iQ-R Series; RS-422/485 x2ch serial connection module |
|
Mitsubishi PLC RJ71C24-R2 Seller in HyderabadPLC iQ-R Series; RS-232 x2ch serial connection module |
|

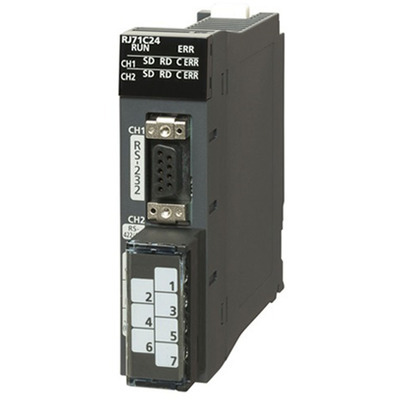

Mitsubishi PLC RJ71C24 Wholesaler in HyderabadPLC iQ-R Series; RS-232, RS-422, and RS-485 serial communication modules |
|

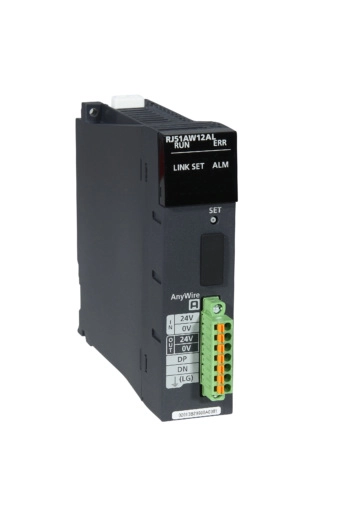

Mitsubishi PLC RJ51AW12AL Retailer in HyderabadMaster unit PLC iQ-R Series AnyWireASLINK |
|

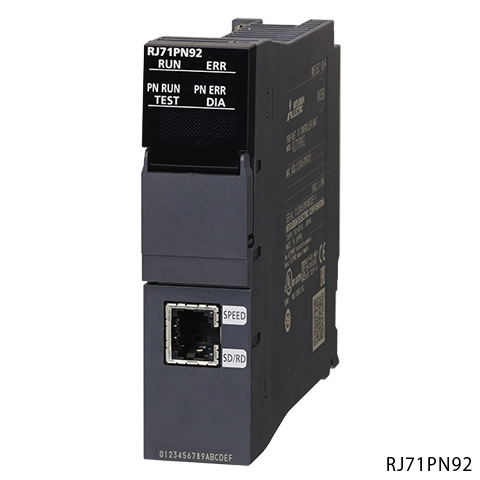

Mitsubishi PLC RJ71PN92 Trader in HyderabadMaster module for Profinet; PLC iQ-R Series |
|
Mitsubishi PLC RJ71PN93 Stockist in HyderabadProfinet I/O device module, PLC iQ-R Series; 10 BASE-T/100 BASE-TX; RJ45 |
|
Mitsubishi PLC RJ71PB91V Vendor in HyderabadMaster module for Profibus DP, PLC iQ-R Series |
|

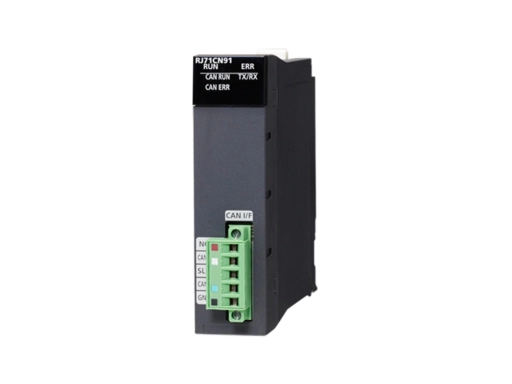

Mitsubishi PLC RJ71CN91 Authorized Dealer in HyderabadPLC CANopen Communication Module, iQ-R Series |
It is critical to develop automation systems that guarantee high productivity and constant product quality if one is to compete in fiercely competitive marketplaces. Three steps are being taken by MELSEC iQ-R to address these issues: lowering TCO while raising existing asset reuse and reliability.
There are many offers going on in our company that is why I cannot tell the exact price or if you want more information then contact us.
We courier it in 3 to 4 working days and then from there it will take as much time as it takes to reach your location for delivery.
If you buy any Mitsubishi product and find any defect in it or need to replace it, you can replace it within 7 days of delivery.
From then, it will take however long it takes to get to your area for delivery. We courier it in 3 to 4 working days.
We have all the products of Mitsubishi PLC MELSEC-Q NETWORK Module series available. Click on the link given below
